PKD series
Ouneva copper cable lugs are designed for connecting cables, coils and busbars. The lugs are manufactured of 99,9 % pure copper and electrolytically coated with tin. Installation of the PKD cable lugs can be performed with the most basic crimping tools. PKD-series cable lugs are compatible with stranded and compacted copper wires. Inner and outer dimensions are smaller in size compared to PK-series.
Installation guide for PKD cable lugs

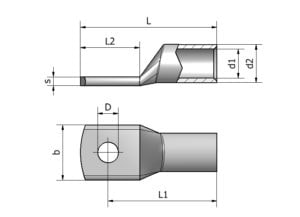

STK code | Product code | Product name | Conductor (mm²) | D (mm) | L (mm) | L1 (mm) | D1 (mm) | D2 (mm) | B (mm) | Weight (g) | Package size (pcs) | Product data |
5201202 | VA02-0006 | PKD 10-5 | 10 | 5,5 | 29 | 23,0 | 4,5 | 7,0 | 11 | 5 | 100 | Product card |
5201204 | VA02-0007 | PKD 10-6 | 10 | 6,5 | 30 | 23,0 | 4,5 | 7,0 | 11 | 5 | 100 | Product card |
5201206 | VA02-0008 | PKD 10-8 | 10 | 8,5 | 32 | 24,0 | 4,5 | 7,0 | 13 | 5 | 100 | Product card |
5201725 | VA02-0051 | PKD 10-10 | 10 | 10,5 | 32 | 24 | 4,5 | 7,9 | 13 | 5 | 100 | Product card |
5201210 | VA02-0009 | PKD 16-6 | 16 | 6,5 | 33,5 | 26,5 | 5,5 | 8,5 | 13 | 9 | 100 | Product card |
5201212 | VA02-0010 | PKD 16-8 | 16 | 8,5 | 35,5 | 27,5 | 5,5 | 8,5 | 15 | 9 | 100 | Product card |
5200374 | VA02-0011 | PKD 16-10 | 16 | 10,5 | 38,5 | 29,5 | 5,5 | 8,5 | 16 | 9 | 100 | Product card |
5200332 | VA02-0012 | PKD 16-12 | 16 | 12,5 | 42,5 | 31,5 | 5,5 | 8,5 | 18 | 10 | 100 | Product card |
5201214 | VA02-0013 | PKD 25-6 | 25 | 6,5 | 37 | 30,0 | 7,0 | 10,0 | 14 | 12 | 100 | Product card |
5201216 | VA02-0014 | PKD 25-8 | 25 | 8,5 | 38 | 30,0 | 7,0 | 10,0 | 15 | 12 | 100 | Product card |
5201218 | VA02-0015 | PKD 25-10 | 25 | 10,5 | 42 | 32,0 | 7,0 | 10,0 | 16 | 12 | 100 | Product card |
5200333 | VA02-0016 | PKD 25-12 | 25 | 12,5 | 46 | 35,0 | 7,0 | 10,0 | 18 | 13 | 100 | Product card |
5201220 | VA02-0017 | PKD 35-6 | 35 | 6,5 | 41 | 33,0 | 8,5 | 12,0 | 17 | 19 | 100 | Product card |
5201222 | VA02-0018 | PKD 35-8 | 35 | 8,5 | 42,5 | 33,5 | 8,5 | 12,0 | 17 | 20 | 100 | Product card |
5201224 | VA02-0019 | PKD 35-10 | 35 | 10,5 | 44 | 34,0 | 8,5 | 12,0 | 17 | 19 | 100 | Product card |
5200334 | VA02-0020 | PKD 35-12 | 35 | 12,5 | 47,5 | 36,5 | 8,5 | 12,0 | 19 | 20 | 100 | Product card |
5201226 | VA02-0021 | PKD 50-8 | 50 | 8,5 | 47,5 | 38,5 | 10,0 | 14,0 | 21 | 29 | 100 | Product card |
5201228 | VA02-0022 | PKD 50-10 | 50 | 10,5 | 49 | 39,0 | 10,0 | 14,0 | 21 | 29 | 100 | Product card |
5201230 | VA02-0023 | PKD 50-12 | 50 | 12,5 | 52 | 42,5 | 10,0 | 14,0 | 23 | 30 | 100 | Product card |
5201232 | VA02-0024 | PKD 70-8 | 70 | 8,5 | 52 | 43,0 | 12,0 | 16,5 | 24 | 44 | 50 | Product card |
5201234 | VA02-0025 | PKD 70-10 | 70 | 10,5 | 53 | 43,0 | 12,0 | 16,5 | 24 | 44 | 50 | Product card |
5201236 | VA02-0026 | PKD 70-12 | 70 | 12,5 | 56 | 44,0 | 12,0 | 16,5 | 24 | 45 | 50 | Product card |
5201238 | VA02-0005 | PKD 95-8 | 95 | 8,5 | 60 | 48,0 | 13,5 | 18,0 | 27 | 59 | 50 | Product card |
5201240 | VA02-0001 | PKD 95-10 | 95 | 10,5 | 60 | 48,0 | 13,5 | 18,0 | 27 | 57 | 50 | Product card |
5201242 | VA02-0027 | PKD 95-12 | 95 | 12,5 | 60 | 48,0 | 13,5 | 18,0 | 27 | 55 | 50 | Product card |
5200453 | VA02-0003 | PKD 120-10 | 120 | 10,5 | 69 | 55 | 15 | 19,5 | 28 | 65 | 25 | Product card |
5200454 | VA02-0028 | PKD 120-12 | 120 | 12,5 | 69 | 55 | 15 | 19,5 | 28 | 62 | 25 | Product card |
5200456 | VA02-0029 | PKD 120-14 | 120 | 14 | 69 | 55 | 15 | 19,5 | 28 | 60 | 25 | Product card |
5200457 | VA02-0030 | PKD 150-10 | 150 | 10,5 | 76 | 60 | 16,5 | 21 | 32 | 103 | 25 | Product card |
5200458 | VA02-0031 | PKD 150-12 | 150 | 12,5 | 76 | 60 | 16,5 | 21 | 32 | 100 | 25 | Product card |
5200459 | VA02-0032 | PKD 150-14 | 150 | 14 | 76 | 60 | 16,5 | 21 | 32 | 97 | 25 | Product card |
5201779 | VA02-0052 | PKD 185-12 | 185 | 13 | 83 | 65 | 19 | 25 | 35 | 145 | 25 | Product card |
5201784 | VA02-0053 | PKD 185-14 | 185 | 15 | 83 | 65 | 19 | 25 | 35 | 143 | 25 | Product card |
5201785 | VA02-0054 | PKD 185-16 | 185 | 17 | 83 | 65 | 19 | 25 | 35 | 140 | 25 | Product card |
5201786 | VA02-0055 | PKD 185-20 | 185 | 21 | 91 | 69 | 19 | 25 | 39 | 146 | 25 | Product card |
5201787 | VA02-0056 | PKD 185-24 | 185 | 25 | 91 | 69 | 19 | 25 | 39 | 140 | 25 | Product card |
5201788 | VA02-0057 | PKD 240-12 | 240 | 13 | 92,5 | 71 | 21 | 27 | 39 | 180 | 20 | Product card |
5201789 | VA02-0058 | PKD 240-14 | 240 | 15 | 92,5 | 71 | 21 | 27 | 39 | 178 | 20 | Product card |
5201790 | VA02-0059 | PKD 240-16 | 240 | 17 | 92,5 | 71 | 21 | 27 | 39 | 175 | 20 | Product card |
5201791 | VA02-0060 | PKD 240-20 | 240 | 21 | 92,5 | 71 | 21 | 27 | 39 | 169 | 20 | Product card |
5201792 | VA02-0061 | PKD 240-24 | 240 | 25 | 92,5 | 71 | 21 | 27 | 39 | 161 | 20 | Product card |
5201793 | VA02-0062 | PKD 300-12 | 300 | 13 | 110 | 86 | 24 | 30 | 43 | 252 | 10 | Product card |
5201794 | VA02-0063 | PKD 300-14 | 300 | 15 | 110 | 86 | 24 | 30 | 43 | 250 | 10 | Product card |
5201795 | VA02-0064 | PKD 300-16 | 300 | 17 | 110 | 86 | 24 | 30 | 43 | 247 | 10 | Product card |
5201796 | VA02-0065 | PKD 300-20 | 300 | 21 | 110 | 86 | 24 | 30 | 43 | 229 | 10 | Product card |
5201797 | VA02-0066 | PKD 300-24 | 300 | 25 | 110 | 86 | 24 | 30 | 43 | 233 | 10 | Product card |
5201798 | VA02-0067 | PKD 400-12 | 400 | 13 | 112 | 88 | 26 | 32 | 49 | 260 | Acc. to order | Product card |
5201799 | VA02-0068 | PKD 400-14 | 400 | 15 | 112 | 88 | 26 | 32 | 49 | 258 | Acc. to order | Product card |
5202300 | VA02-0069 | PKD 400-16 | 400 | 17 | 112 | 88 | 26 | 32 | 49 | 255 | Acc. to order | Product card |
5202301 | VA02-0070 | PKD 400-20 | 400 | 21 | 112 | 88 | 26 | 32 | 49 | 249 | Acc. to order | Product card |
5202302 | VA02-0071 | PKD 400-24 | 400 | 25 | 112 | 88 | 26 | 32 | 49 | 241 | Acc. to order | Product card |
