Splice and parallel sleeves
Splices and parallel sleeves are designed for extending and branching of copper cables and coils. The connectors are manufactured of 99,9 % pure copper and are electrolytically coated with tin. Installation of the sleeves can be performed with the most basic crimping tools.
JH splice connector
| STK code | Product code | Product name | Conductor (mm²) | L (mm) | D1 (mm) | D2 (mm) | Weight (g) | Package size (pcs) | Product data |
| 5206600 | VA03-0033 | JH 0,75 | 0,75 | 11,5 | 1,5 | 2,6 | 1 | 100 | Product card |
| 5206605 | VA03-0034 | JH 1,5 | 1,5 | 15 | 1,8 | 3,3 | 1 | 100 | Product card |
| 5206610 | VA03-0015 | JH 2,0 | 2,5 | 15 | 2,3 | 3,9 | 1 | 100 | Product card |
| 5201740 | VA03-0096 | JH 2,5 | 2,5 | 15 | 2,6 | 4,2 | 1 | 100 | Product card |
| 5206620 | VA03-0036 | JH 6 | 6 | 19 | 3,6 | 6 | 3 | 100 | Product card |
| 5206625 | VA03-0037 | JH 10 | 10 | 21 | 5 | 8 | 6 | 100 | Product card |
| 5206630 | VA03-0038 | JH 16 | 16 | 29 | 6 | 9 | 9 | 100 | Product card |
| 5206635 | VA03-0035 | JH 25 | 25 | 35 | 8 | 11 | 14 | 100 | Product card |
| 5206640 | VA03-0039 | JH 35 | 35 | 35 | 9 | 13 | 22 | 100 | Product card |
| 5206645 | VA03-0040 | JH 50 | 50 | 40 | 11 | 14,5 | 25 | 50 | Product card |
| 5206650 | VA03-0041 | JH 70 | 70 | 40 | 13 | 17 | 33 | 50 | Product card |
| 5206655 | VA03-0042 | JH 95 | 95 | 55 | 15 | 20 | 67 | 50 | Product card |
| 5206660 | VA03-0013 | JH 120 | 120 | 55 | 17 | 22 | 74 | 50 | Product card |
| 5206665 | VA03-0043 | JH 150 | 150 | 55 | 19 | 25 | 99 | 25 | Product card |
| 5206670 | VA03-0012 | JH 185 | 185 | 70 | 21 | 27 | 138 | 25 | Product card |
| 5206675 | VA03-0053 | JH 240 | 240 | 70 | 22 | 29 | 156 | 25 | Product card |
| 5206680 | VA03-0023 | JH 300 | 300 | 75 | 24,5 | 31,5 | 180 | 10 | Product card |
| 5206685 | VA03-0024 | JH 400 | 400 | 100 | 30 | 38 | 210 | 10 | Product card |

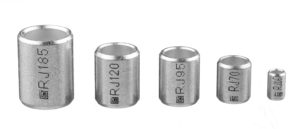

RJ parallel sleeves
| STK code | Product code | Product name | Johtimet max (mm²) | L (mm) | D1 (mm) | D2 (mm) | Weight (g) | Package size (pcs) | Product data |
| 5201280 | VA03-0017 | RJ 1,5 | 1,5 | 8 | 1,6 | 3,4 | 0,4 | 100 | Product card |
| 5201279 | VA03-0016 | RJ 2,0 | 2,5 | 8 | 2,3 | 3,9 | 0,6 | 100 | Product card |
| 52017 39 | VA03-0097 | RJ 2,5 | 2,5 | 7 | 2,6 | 4,2 | 0,6 | 100 | Product card |
| 5200472 | VA03-0026 | RJ 6 | 6 | 10 | 3,6 | 6 | 2 | 100 | Product card |
| 5200473 | VA03-0019 | RJ 10 | 10 | 10 | 5 | 8 | 3 | 100 | Product card |
| 5200474 | VA03-0020 | RJ 16 | 16 | 14 | 6 | 9 | 4 | 100 | Product card |
| 5200497 | VA03-0025 | RJ 25 | 25 | 15 | 8 | 11 | 6 | 100 | Product card |
| 5200498 | VA03-0021 | RJ 35 | 35 | 19 | 9 | 13 | 10 | 100 | Product card |
| 5200499 | VA03-0022 | RJ 50 | 50 | 20 | 11 | 14,5 | 11 | 50 | Product card |
| 5201100 | VA03-0032 | RJ 70 | 70 | 20 | 13 | 17 | 15 | 50 | Product card |
| 5201103 | VA03-0014 | RJ 95 | 95 | 25 | 15 | 20 | 25 | 50 | Product card |
| 5201104 | VA03-0027 | RJ 120 | 120 | 27 | 17 | 22 | 30 | 50 | Product card |
| 5201109 | VA03-0028 | RJ 150 | 150 | 30 | 19 | 25 | 48 | 25 | Product card |
| 5201114 | VA03-0029 | RJ 185 | 185 | 35 | 21 | 27 | 56 | 25 | Product card |
| 5201118 | VA03-0030 | RJ 240 | 240 | 35 | 24 | 30 | 68 | 25 | Product card |
| 5201119 | VA03-0031 | RJ 300 | 300 | 40 | 26 | 32 | 83 | 10 | Product card |
| 5201219 | VA03-0054 | RJ 400 | 400 | 50 | 30 | 36 | 106 | 10 | Product card |
