Pole branching connectors are designed to be used with both aluminium and copper cables. Several different connector kits available. Ask for more information from Ouneva sales.
Use:
Single pole distribution block for branching connections. Pole Branching connectors have from three to nine branching conductor inputs.
When conductors ≥2,5 mm² are used in LED input spaces and ≥25 mm² conductors in larger connector spaces, IP23 can be achieved with adequate sized conductor in each slot. Sealing kit is available as accessory for IP33 sealing.
Materials used
The material of the body and tightening screws is aluminium with tin plating. Plastic cover is made of polyamide.
Standards
EN 60947-7-1:2009, EN 61238-1:2003; EN 60529:1991 + A1:2000 + A2:2013
| STK code | Product code | Product name | Colour | Conductor (mm²) | Product data | Installation |
| 1914284 | VC02-0072 | OPK 2×50 LED Grey | Grey | Al 2×50 / Cu 2×35+1×1,5-6 | Product card | Installation |
| 1914285 | VC02-0075 | OPK 2x50 LED Blue | Blue | Al 2×50 / Cu 2×35+1×1,5-6 | Product card | Installation |
| 1914286 | VC02-0076 | OPK 2x50 LED Yellow/Green | Yellow/Green | Al 2×50 / Cu 2×35+1×1,5-6 | Product card | Installation |
| 1914331 | VC02-0111 | OPK 3×50 LED Grey | Grey | Al 3×50 / Cu 3×35 + 2×1,5-6 | Product card | Installation |
| 1914332 | VC02-0112 | OPK 3x50 LED Blue | Blue | Al 3×50 / Cu 3×35 + 2×1,5-6 | Product card | Installation |
| 1914333 | VC02-0113 | OPK 3x50 LED Yellow/Green | Yellow/Green | Al 3×50 / Cu 3×35 + 2×1,5-6 | Product card | Installation |
| 1914200 | VC02-0026 | OPK 4x50 Grey | Grey | Al 4×50 / Cu 4×35 | Product card | Installation |
| 1914227 | VC02-0040 | OPK 4x50 Blue | Blue | Al 4×50 / Cu 4×35 | Product card | Installation |
| 1914202 | VC02-0057 | OPK 4x50 Yellow/Green | Yellow/Green | Al 4×50 / Cu 4×35 | Product card | Installation |
| 1914229 | VC02-0039 | OPK 4x50 LED Grey | Grey | Al 4×50 / Cu 4×35+3×1,5-2,5 | Product card | Installation |
| 1914204 | VC02-0041 | OPK 4x50 LED Blue | Blue | Al 4×50 / Cu 4×35+3×1,5-2,5 | Product card | Installation |
| 1914206 | VC02-0055 | OPK 4x50 LED Yellow/Green | Yellow/Green | Al 4×50 / Cu 4×35+3×1,5-2,5 | Product card | Installation |
| 1914201 | VC02-0027 | OPK 6x50 Grey | Grey | Al 6×50 / Cu 6×35 | Product card | Installation |
| 1914228 | VC02-0042 | OPK 6x50 Blue | Blue | Al 6×50 / Cu 6×35 | Product card | Installation |
| 1914203 | VC02-0058 | OPK 6x50 Yellow/Green | Yellow/Green | Al 6×50 / Cu 6×35 | Product card | Installation |
| 1914230 | VC02-0038 | OPK 6×50 LED Grey | Grey | Al 6×50 / Cu 6×35+3×1,5-2,5 | Product card | Installation |
| 1914205 | VC02-0043 | OPK 6x50 LED Blue | Blue | Al 6×50 / Cu 6×35+3×1,5-2,5 | Product card | Installation |
| 1914207 | VC02-0059 | OPK 6x50 LED Yellow/Green | Yellow/Green | Al 6×50 / Cu 6×35+3×1,5-2,5 | Product card | Installation |
Pole branching connector kit with conductors
Kit is designed especially for lightning pole connections. Kit includes LED connectors for connecting 4 or 5 cabled pole systems, 350 mm / 16 mm² grounding cable with PK 16-6H fork cable shoe and 350 mm / 1,5 mm² black connector cable.
| STK code | Product code | Type | Weight (g) | Package size (pcs) | Product data | Installation |

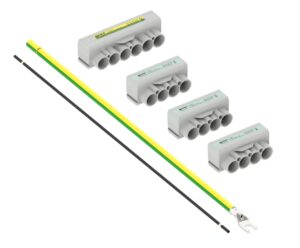

| 1914277 | VC02-0071 | Pole branching connector kit 3x 4×50 mm², 1x 6×50 mm² with conductors | 250 | Acc. to order | Product card | Installation |
| 1914373 | VC02-0130 | Pole branching connector kit 3x 2×50 mm², 1x 3×50 mm² with conductors | 240 | Acc. to order | Product card | Installation |
| 1914375 | VC02-0132 | Pole branching connector kit 3x 2×50 mm², 1x 3×50 mm² with grounding conductor | 230 | Acc. to order | Product card | Installation |
| 1914382 | VC02-0139 | Pole branching connector kit 3x 3×50 mm², 1x 4×50 mm² with conductors | 274 | Acc. to order | Product card | Installation |
Pole branching connector kit with fuse base
Kit is designed especially for lightning pole connections. Kit includes LED connectors for connecting 4 or 5 cabled pole systems, 350 mm / 16 mm² grounding cable with PK 16-6H fork cable shoe and 350 mm / 1,5 mm² black connector cable and fuse with base.
| STK code | Product code | Type | Weight (g) | Package size (pcs) | Product data | Installation |
| 1914374 | VC02-0131 | Pole branching connector kit 3x 2×50 mm², 1x 3×50 mm² with fuse base and 6 A fuse | 470 | Acc. to order | Product card | Installation |
| 1914383 | VC02-0140 | Pole branching connector kit 3x 3×50 mm², 1x 4×50 mm² with fuse base and 6 A fuse | 444 | Acc. to order | Product card | Installation |
| 1914384 | VC02-0141 | Pole branching connector kit 3x 3×50 mm², 1x 4×50 mm² with fuse base and 10 A fuse | 444 | Acc. to order | Product card | Installation |
| 1914292 | VC02-0085 | Pole branching connector kit 3x 4x50 mm², 1x 6x50 mm² with fuse base and 6 A fuse | 465 | Acc. to order | Product card | Installation |
| 1914273 | VC02-0069 | Pole branching connector kit 3x 4x50 mm², 1x 6x50 mm² with fuse base and 10 A fuse | 465 | Acc. to order | Product card | Installation |
| 1914330 | VC02-0115 | Pole branching connector kit 5x 4×50 mm² with fuse base and 6 A fuse | 492 | Acc. to order | Product card | Installation |
| 1914329 | VC02-0114 | Pole branching connector kit 5x 4×50 mm² with fuse base and 10 A fuse | 492 | Acc. to order | Product card | Installation |
Pylväskalustesarjan tiivistepakkaus
Material of sealing kit is EPDM.
| STK code | Product code | Weight (g) | Package size (pcs) | Product data |
| 1914265 | OD01-0078 | 5 | 3 | Product card |
