Grounding busbars

Grounding busbars are manufactured of pure unplated copper. Busbars can be used for safety grounding in different circumstances. Connections are numbered by stamping. Insulator and fastening set are available separately.

STK code	Product code	Type	L (mm)	W (mm)	H (mm)	Weight (g)	Package size (pcs)	Product data
1912379	AE06-1711	10x100x1600, 60 holes 11 mm	1600	100	10	13800	Acc. to order	Product card
1912339	AE06-1680	10x100x1200, 44 holes 11 mm	1200	100	10	10420	Acc. to order	Product card
1912340	AE06-1681	10x100x1000, 36 holes 11 mm	1000	100	10	8690	Acc. to order	Product card
1912378	AE06-1710	10x100x750, 25 holes 11 mm	750	100	10	6500	Acc. to order	Product card
1912341	AE06-1682	10x100x600, 20 holes 11 mm	600	100	10	5220	Acc. to order	Product card
1912377	AE06-1709	10x100x450, 13 holes 11 mm	450	100	10	3900	Acc. to order	Product card
1912342	AE06-1683	10x100x300, 8 holes 11 mm	300	100	10	2620	Acc. to order	Product card
1912343	AE06-1684	10x80x1000, 36 holes 9 mm	1000	80	10	6970	Acc. to order	Product card
1912344	AE06-1685	10x80x600, 20 holes 9 mm	600	80	10	4189	Acc. to order	Product card
1912345	AE06-1686	10x80x300, 8 holes 9 mm	300	80	10	2100	Acc. to order	Product card
1912346	AE06-1687	10x50x1000, 18 holes 11 mm	1000	50	10	4300	Acc. to order	Product card
1912347	AE06-1688	10x50x600, 10 holes 11 mm	600	50	10	2580	Acc. to order	Product card
1912348	AE06-1689	10x50x300, 4 holes 11 mm	300	50	10	1300	Acc. to order	Product card
1912349	AE06-1690	10x50x200, 2 holes 11 mm	200	50	10	860	Acc. to order	Product card

Tin plated grounding busbar

Tin plated grounding busbars are suitable for special conditions where bare copper busbars cannot be used.

STK code	Product code	Product name	L (mm)	W (mm)	H (mm)	Weight (g)	Package size (pcs)	Product data
1914328	AE06-1934	Grounding busbar, tin plated 10x100x1600, 60 holes 11 mm	1600	100	10	13800	Acc. to order	Product card
1914315	AE06-1935	Grounding busbar, tin plated 10x100x1200, 44 holes 11 mm	1200	100	10	10420	Acc. to order	Product card
1914316	AE06-1931	Grounding busbar, tin plated 10x100x1000, 36 holes 11 mm	1000	100	10	8690	Acc. to order	Product card
1914327	AE06-1936	Grounding busbar, tin plated 10x100x750, 25 holes 11 mm	750	100	10	6500	Acc. to order	Product card
1914317	AE06-1932	Grounding busbar, tin plated 10x100x600, 20 holes 11 mm	600	100	10	5220	Acc. to order	Product card
1914326	AE06-1937	Grounding busbar, tin plated 10x100x450, 13 holes 11 mm	450	100	10	3900	Acc. to order	Product card
1914318	AE06-1938	Grounding busbar, tin plated 10x100x300, 8 holes 11 mm	300	100	10	2620	Acc. to order	Product card
1914319	AE06-1939	Grounding busbar, tin plated 10x80x1000, 36 holes 9 mm	1000	80	10	6970	Acc. to order	Product card
1914320	AE06-1922	Grounding busbar, tin plated 10x80x600, 20 holes 9 mm	600	80	10	4189	Acc. to order	Product card
1914321	AE06-1940	Grounding busbar, tin plated 10x80x300, 8 holes 9 mm	300	80	10	2100	Acc. to order	Product card
1914322	AE06-1941	Grounding busbar, tin plated 10x50x1000, 18 holes 11 mm	1000	50	10	4300	Acc. to order	Product card
1914323	AE06-1942	Grounding busbar, tin plated 10x50x600, 10 holes 11 mm	600	50	10	2580	Acc. to order	Product card
1914324	AE06-1943	Grounding busbar, tin plated 10x50x300, 4 holes 11 mm	300	50	10	1300	Acc. to order	Product card
1914325	AE06-1944	Grounding busbar, tin plated 10x50x200, 2 holes 11 mm	200	50	10	860	Acc. to order	Product card

Insulator and fastening packages

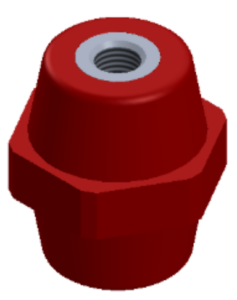

Insulators are made of halogen free polyester. Fastening pieces are zinc plated steel. Package includes two insulators, four DIN933 M10x20 bolts and four DIN125 M10 flat pressure washers. Fastening package includes 10 pcs of DIN933x30 screws, 20 pcs of DIN125 flat pressure washers and 10 pcs of DIN934 nuts. Accessory sizes of M8 and M10 available.

STK code	Product code	Product name	Weight (g)	Package size (pcs)	Product data
1912354	AE08-0002	Insulator/fastening package for grounding busbars	349	Acc. to order	Product card
1912373	AE09-0003	Fastening package for grounding busbars M8	250	Acc. to order	Product card
1912374	AE09-0004	Fastening package for grounding busbars M10	463	Acc. to order	Product card
