OJL distribution blocks are used for branching connections in electrical devices. OJL distribution blocks can be used with aluminium and copper wires.
Contact spaces are pre-greased and the connection done with hex screws guarantee easy and quick installation. Installation can be done with screws or onto a DIN-rail.
The new OJL 80 & 135 distribution blocks can be connected in series.
In other models, the input is through one
conductor. Outputs can be done between the connector models with 6, 7 or 11 conductors. Branching connections can be also
done with input conductors up to 240mm2 and busbars up to 10x(1x24).
MATERIALS: Bodies of the connectors are made of aluminium and plated with tin. Insulating covers are made of UL 94 V-0 polyamide.
STANDARDS: EN 60947-7-1:2009, EN 61238-1:2003
Ask for OJL-connector 3D-models made for electrical designing from our support!
OJL 80
New OJL distribution block from Ouneva!
The single pole distribution block OJL 80 for branching connections.
Input connectors 2x Al/Cu 2,5-16 mm².
Output wirings 6x Cu (2,5-6 mm²)
DIN-rail mounting.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1914376 | VG03-0059 | OJL 80 Grey | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |
1914377 | VG03-0060 | OJL 80 Blue | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |
1914378 | VG03-0061 | OJL 80 Green | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |
1914379 | VG03-0068 | OJL 80 Grey PA66 | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |
1914380 | VG03-0069 | OJL 80 Blue PA66 | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |
1914381 | VG03-0070 | OJL 80 Green PA66 | 2xAl/Cu 2,5-16 | 6xCu 2,5-6 | Product card | Installation |

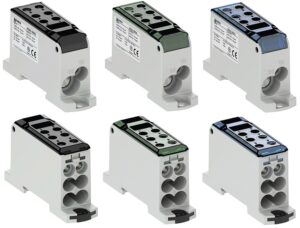

OJL 135
New OJL distribution block from Ouneva!
The single pole distribution block OJL 135 for branching connections. Distributes the current through 6 output cables. Suitable for series connection.
Input wirings either 1x Al/Cu 2,5-35 mm² or 1x Al/Cu 2,5-10 mm².
Output wirings 4x Cu (2,5-16 mm²), 2x Cu (2,5-10 mm²).
DIN-rail / screw mounting.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1914357 | VG03-0052 | OJL 135 Grey | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
1914358 | VG03-0053 | OJL 135 Blue | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
1914359 | VG03-0054 | OJL 135 Green | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
1914360 | VG03-0065 | OJL 135 Grey PA66 | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
1914361 | VG03-0066 | OJL 135 Blue PA66 | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
1914362 | VG03-0067 | OJL 135 Green PA66 | 1xAl/Cu 2,5-35 / 1xAl/Cu 2,5-10 | 4xCu 2,5-16, 2xCu 2,5-10 | Product card | Installation |
OJL 200
The single pole distribution block OJL 200 for branching connections.
Input wirings 1xAl/Cu (10-70mm²).
Output wirings :(6xCu (2,5-16mm²).
DIN-rail / screw mounting.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1912009 | VG03-0006 | OJL 200 Grey | 1xAl/Cu 10-70 | 6xCu 2,5-16 | Product card | Installation |
1912390 | VG03-0031 | OJL 200 Blue | 1xAl/Cu 10-70 | 6xCu 2,5-16 | Product card | Installation |
1912392 | VG03-0032 | OJL 200 Green | 1xAl/Cu 10-70 | 6xCu 2,5-16 | Product card | Installation |
OJL 280
The single pole distribution block OJL 280 for branching connections.
Input wirings: 1xAl/Cu (35-120mm²).
Output wirings (total 11 pcs):
2xCu (6-35 mm²), 5xCu (2,5-16mm²) and 4xCu (2,5-10mm²).
DIN-rail / screw mounting.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1912008 | VG03-0003 | OJL 280 Grey | 1xAl/Cu 35-120 | 2xCu 6-35, 5xCu 2,5-16, 4xCu 2,5-10 | Product card | Installation |
1912388 | VG03-0033 | OJL 280 Blue | 1xAl/Cu 35-120 | 2xCu 6-35, 5xCu 2,5-16, 4xCu 2,5-10 | Product card | Installation |
1912389 | VG03-0034 | OJL 280 Green | 1xAl/Cu 35-120 | 2xCu 6-35, 5xCu 2,5-16, 4xCu 2,5-10 | Product card | Installation |
OJL 400
OJL 400 C and CS distribution blocks represent an option input for aluminium or copper cables with cross section range of 95-240mm2. 400 C S model also include an option for cover sealing.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1912093 | VG03-0007 | OJL 400 C Grey | 1xAl/Cu 95-240 | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912393 | VG03-0035 | OJL 400 C Blue | 1xAl/Cu 95-240 | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912394 | VG03-0036 | OJL 400 C Green | 1xAl/Cu 95-240 | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912094 | VG03-0008 | OJL 400 C S | 1xAl/Cu 95-240 | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
OJL 400 FBB
OJL 400 FBB and FBB S distribution blocks represent an option for using flexible busbar as input. 400 FBB S and C S models also include an option for cover sealing.
STK code | Product code | Product name | Conductor-in (mm²) | Conductor-out (mm²) | Product data | Installation |
1912095 | VG03-0009 | OJL 400 FBB Grey | Joustava virtakisko Cu 10x(1×24) | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912395 | VG03-0037 | OJL 400 FBB Blue | Joustava virtakisko Cu 10x(1×24) | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912396 | VG03-0038 | OJL 400 FBB Green | Joustava virtakisko Cu 10x(1×24) | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
1912096 | VG03-0010 | OJL 400 FBB S | Joustava virtakisko Cu 10x(1×24) | 4xCu 2,5-35, 3xCu 6-50 | Product card | Installation |
OJL busbar adapters
Busbar adapters are used for connecting OJL connectors to copper or aluminium busbars. Adapters are made of tin plated copper.
STK code | Product code | Product name | Product data | Installation |
1912397 | VG03-0030 | Busbar adapter OJL 200 | Product card | Installation |
1912398 | VG03-0029 | Busbar adapter OJL 280 | Product card | Installation |
1912399 | VG03-0028 | Busbar adapter OJL 400 C | Product card | Installation |
